Diecutting & Diepunching Machinery

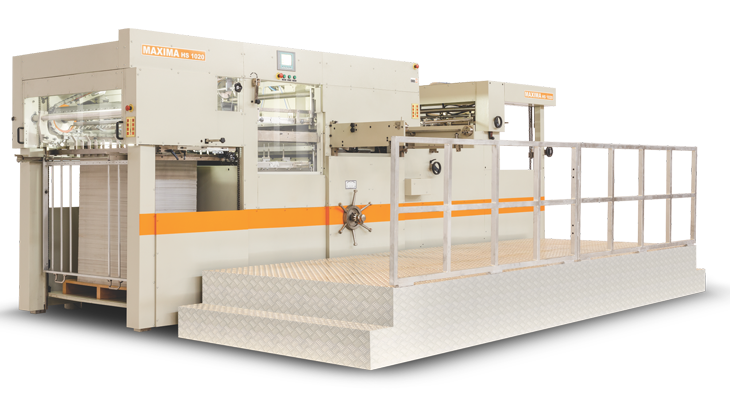

MAXIMA HS 1020

Die Punching Machine – Technical Specification MAXIMA HS 1020
Maximum Sheet Size 712 mm x 1016 mm (28″x40″)
Minimum Sheet Size 355 mm x 406 mm (14″ x 16″)
Maximum Die Cutting Area 700 mm x 1010 mm (27.5″ x 39.7″)
Maximum Pressure (N) 250 Ton
Height of Cutting Rules 23.8 mm
Minimum Gripper Margin 9 mm
Maximum Machine Speed 7500 sheet/Hour
Sheet Thickness Paper & Board 0.1 mm – 1.5 mm
Sheet Thickness Corrugated Board Max. 4 mm
Feeding Pile Height 1350 mm
Delivery Pile Height 1050 mm
Total Power 17 KW (23 HP)
Size of Machine L 5.9 mtr x W 2.7 mtr x H 2.2 mtr
L 19.3 x W 8.9 x H 7.2′
Size of Machine (Incl. Platform) L 5.9 mtr x W 3.7 mtr x H 2.2 mtr
L 19.3′ x W 12.1′ x H 7.2′
Weight of Machine Approx. 14500 Kg
Specifications and features are subject to change without prior notice.

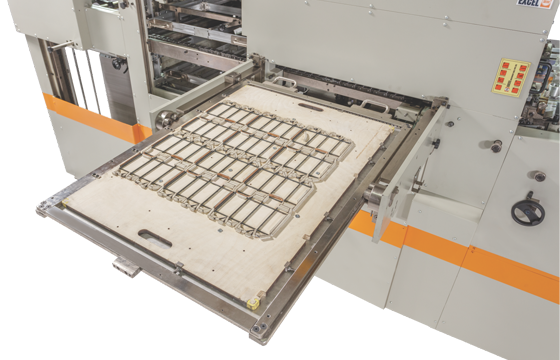

Diecutting Section

  • Pneumatic chase locking system for perfect positioning and rigid locking.
  • Cutting chase turn over device for quick change over operation.
  • Safety clutch of main chain drive emergently stops the machine when an overload occurs due to machine or operator fault.
  • Pneumatic clutch and Brake with high torque and precision.
  • Rigid toggle design for smoother working at maximum die cutting pressure.
  • Improved gripper bar lock system for accurate paper registration.
  • Automatic Centralized Lubrication system and main drive chain lubricating system.
  • Computerized control Touch screen display system for immediate tracing and visual machine status and possible machine stop causes.
  • Gripper bars made of light weight and durable aluminum alloy ensures accurate paper registrations.
Diecutting Machine Cutting Section

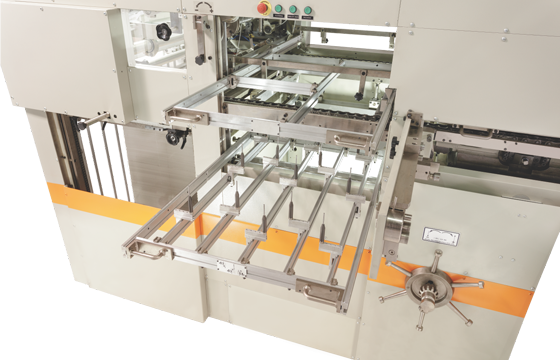

Diecutting Punching Machine Stripping Section

STRIPPING SECTION *

  • Triple action stripping (Upper, Middle and bottom)
  • Change over time minimized by using same registration system in die cutting and stripping.
  • Stripping tools on upper and lower frames can be mounted easily.
  • Waste pieces between the blanks are stripped securely.

FEEDER

  • Special designed feeder for high speed and accurate feeding
  • Adjustable advance and retard of feeder timing.
  • Safety photo electric device prevent over-ascending and over¬¨descending of paper pile.
  • Suction unit with multiple adjustments and fully adjustable suction cups.
  • Electronically controlled micro adjustment for up and down pile table.
  • Non-Stop device for feeder station can ensure continuous production.
  • Pre-Loading attachment.
Diecutting Machine Feeder Section
Diecutting Machinery Feed Table

FEED TABLE

  • Front lays and side lays with Micro adjustment for accurate paper positioning being effected from outside the machine, even while the machine runs.
  • The Pull-Push side Lay specially designed for thin, thick and corrugated paper sheets can be changed over from pulling to pushing easily.
  • The Speed of feeding belt can be adjusted easily.
  • Pull and Push side lays are on both sides of the feed table.
  • Front lay & Side Lay register is controlled by photo sensors.

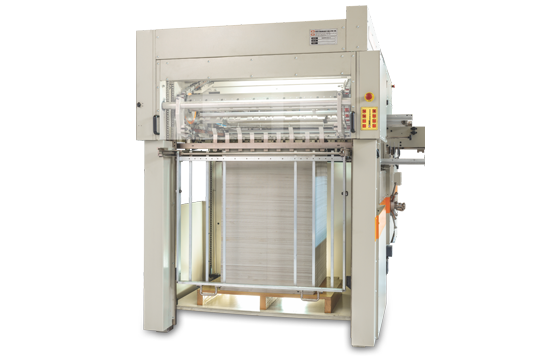

DELIVERY SECTION

  • Safety photo electric device prevent over-ascending and over-descending of paper file.
  • Non-Stop grill attachment for delivery station can ensure continues production.
  • Adjustable brush helps perfect releasing of paper from grippers to achieve high quality stacking.
  • Side and front joggers are adjustable to the sheet size to set every sheet in to perfect position.
Diecutting Machine Delivery Section
Die Cutting Punching Machine Control Panel

CONTROL PANEL

  • All Components are branded and CE marked.
  • All key parameters visible on HMI.
  • Siemens Automation based die cutting machine.
  • Reliable Automation system with minimum down time, faster in execution, highly precious.
  • Most reliable variable Frequency drive unit of Siemens used for Main motor operation.
  • Control Panel & automation system is design in such a way that diagnostics & trouble shooting of field problems, Operational matters & field maintenance reminders are easy & user friendly.

* Optional On Request
