Semi Automatic Die Cutting Machine

Semi Automatic Corrugated Paper Die Cutting Machine MAXIMA CR 35

Die Punching Machine – Technical Specification MAXIMA CR35
Maximum Sheet Size 900mm X 630mm (35.5 X 24.75 Inch)
Minimum Sheet Size 355mm X 305mm (14 X12 Inch)
Maximum Cutting Size 890mm X 615mm (35 X 24.25 Inch)
Paper Thickness Upto 4mm Corrugated paper including laminated.
Maximum Cutting Pressure 180 Ton
Maximum Feeding Pile Height 1250 mm
Maximum Delivery Pile Height 1150 mm
Maximum Cutting Speed 4000 Sheet /Hour
Total Power 5.5 Kw
Size of Machine (Incl. Platform) L 4.5 mtr. X W 3.3 mtr. X H 2.2 mtr.
Total Weight 8 Ton Approx.
Specifications and features are subject to change without prior notice


  • Sturdy, smooth performance and economic die cutting machine.
  • Sheet punching in clear and accurate shape.
  • Safety designed to prevent operational accidents.
  • Safety clutch of main chain drive emergency stops the machine when an overload occurs due to machine or operator fault.
  • Excellent versatility (suitable for small quantities and mass production)
  • Self-diagnosis system with information system.
  • Controlled by PLC for smooth operation, fault detection.
  • Minimum maintenance and environment friendly
  • Extra High Pile for better productivity.
  • Advance pile system.

Paper Feeding And Preloading Unit

  • Safe and reliable preloading mechanism, ensure paper stack more precise.
  • Economic and practical manual feeding method effectively resolve the problem of feeding and positioning of curve paper.
  • Paper feeding pallet moves up automatically, facilitating operation.
  • Front lay and side lay adjustable conveniently.
  • Touch Screen Monitor shows working conditions, malfunctions and necessary damage control, ensuring more convenient operation.
Preloading Unit of Diecutting Machine

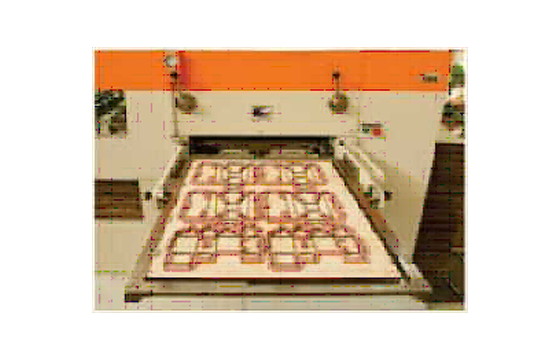

Diecutting Machine Cutting Section

Die Cutting Section

  • Accurate die cutting at high speed for desired quantity production. Due to stringent selection of material we ensure accurate, precise and long lasting cutting performance with flexibility.
  • Uniform cutting pressure can be adjusted with simple turning of wheel for uniform and even output for a time bound delivery

Delivery Section

  • Reliable side jogger and back jogger make delivery pile smooth and precise.
  • Automatic delivery pallet ensures receiving paper smoothly and effectively.
Semi Automatic Diecutting Machine Delivery Section

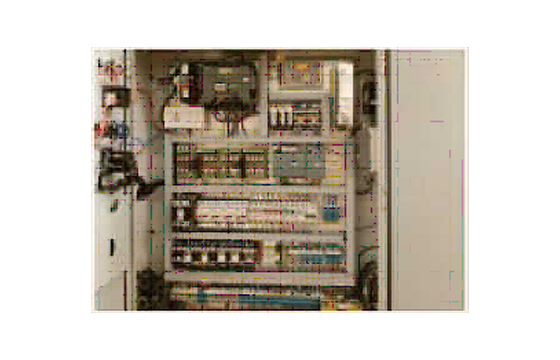

Semi Automatic Diecutting Machine Electronic Control

Electric Control

  • PLC Control assists smooth working procedure from feeding, die cutting to delivery.
  • Equipped with complete security measures, realizing safe production, stable operation.
